Turbosmart Progate 50 – Gen V External Wastegate

SKU: TS-0554

Description

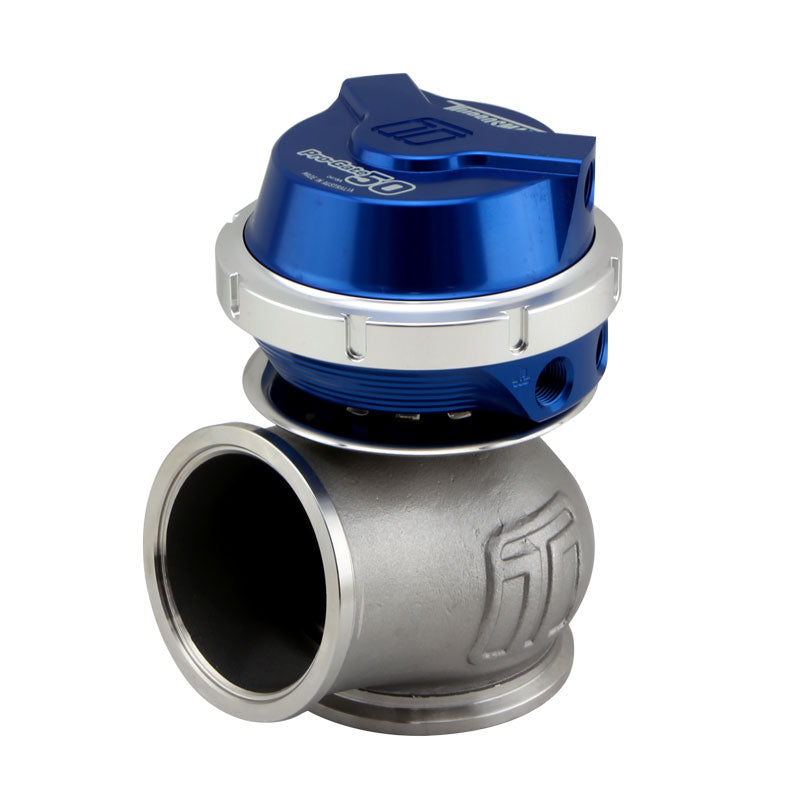

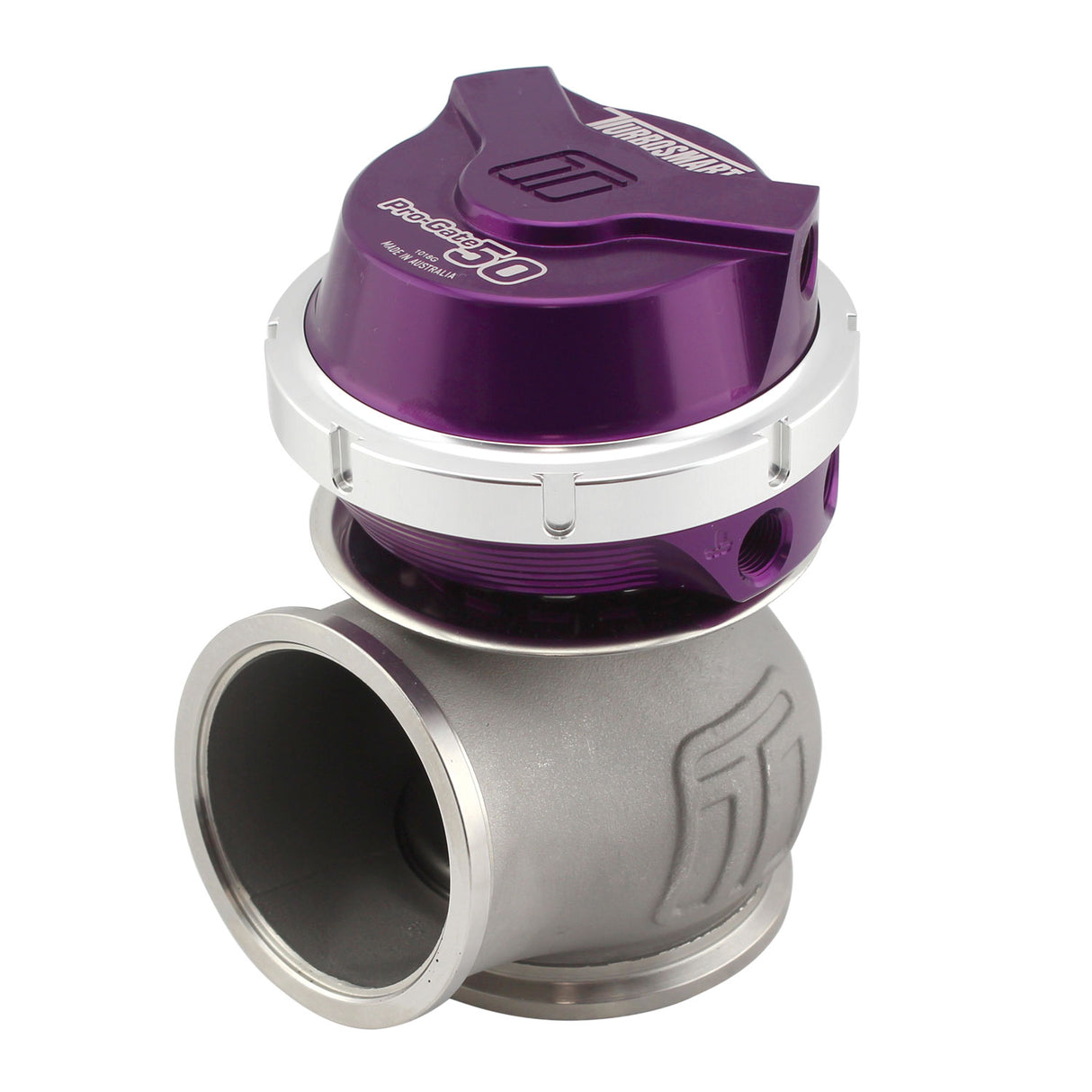

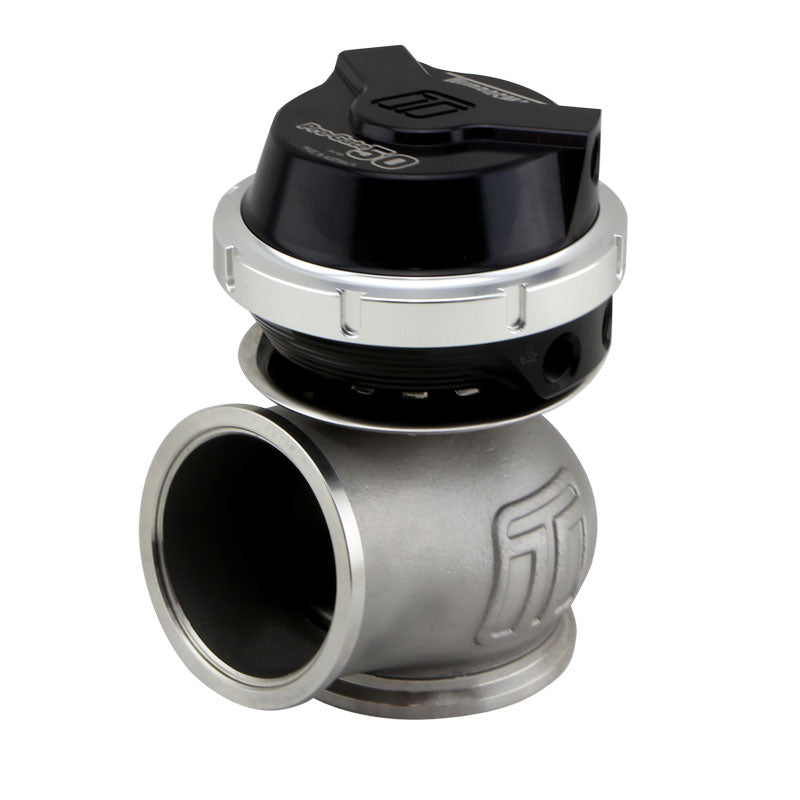

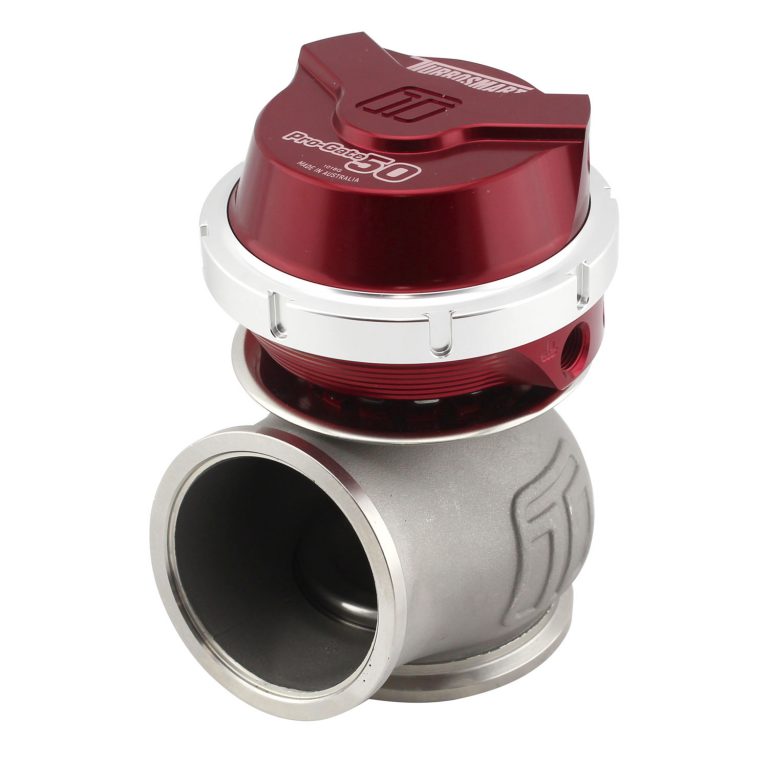

Turbosmart Progate 50 – Gen V External Wastegate

The Turbosmart Progate 50 is a product Walton Motorsport has always recommended for performance. Moreover the supply of spare parts and accessories. In addition, to the constant development to improve the range.

The Turbosmart External Wastegate Gen V Progate 50 is a Motorsport proven cost-effective external wastegate.

GenV provides many user configurations. In addition, world-leading extended thermal performance. Moreover, fatigue resistance and best-in-class flow performance for optimum position. Above all, longevity.

The GenV External Wastegate from Turbosmart. In short, is a ground-up rework of a classic. Therefore, the only feature that rolled over from the Gen4 range was the mounting position. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features and options, as a result, better performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system. Variable actuator cap and base. As a result, there is an easy 360-degree optional routing of reference hoses. Secondly, Strap-type V-band clamps. Moreover, Optional liquid-cooling ports. After that, 1/8″ NPT reference ports are provided with the full range of available springs.

Fitting Instructions

Turbosmart External Wastegate Gen V Progate 50 Features

  • Class-Leading, Thermal Performance
  • Class-Leading, CFD & Bench Validated Flow Performance
  • Nitronic 60 Valve Guide. Moreover, High Temp 347 SS Body
  • 17/7 PH Stainless Steel Springs

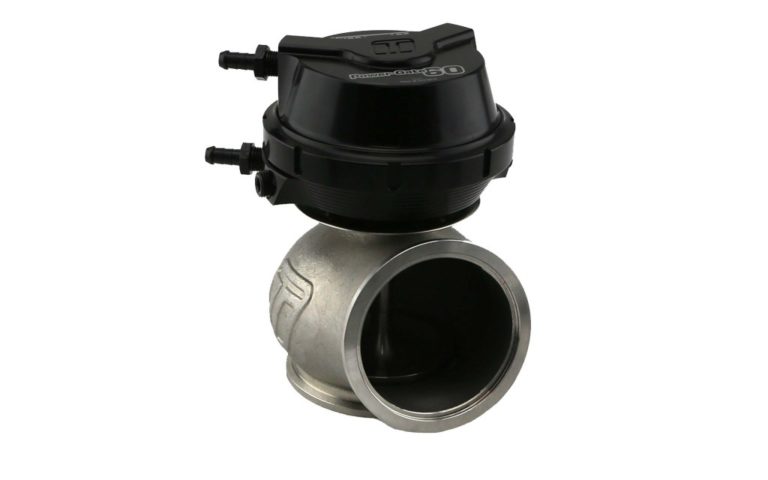

  • Liquid Actuator Cooling Option
  • Strap Type V-band clamps.

SUPPLIED WITH

  • GenV Wastegate unit
  • All Springs Included in Box
  • Wastegate Pre-fitted as Per Description
  • GenV SS316 Valve seat
  • GenV V-Band Clamps
  • Mounting Bolts and Nuts
  • GenV Inlet & Outlet Weld Flanges
  • Collar tool (master/slave)
  • 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4 x 1/8” NPT plugs (1x installed)
  • 2 x 1/8” NPT nipples

Turbosmart External Wastegate Gen V Progate 50 FAQs

Do I need to use the liquid cooling ports?

No. however, it is purely an option for extreme applications where there is limited airflow around the wastegate.

Can I rotate the top housing?

The modular design of the GenV Range of External Wastegates means you can rotate the actuator housing 360 degrees. As a result, virtually unlimited hose routing options.

Will a GenV version fit where my Gen4 Turbosmart Wastegate fit?

We made sure the inlet and outlet fitting orientation matched the previous gates for that exact reason. As a result, the only thing in common between the previous design and this one is the mounting orientation.

How do I change the spring(s)?

You will need the locking collar tool as supplied in the box. Most importantly, you also need to observe the instructions. Secondly, apply pressure to the top cap before you can remove the collar. This is part of the design. Moreover, an important anti-vibration measure.

What size are the reference fittings?

Both the boost control reference ports and the (Optional) liquid cooling ports are 1/8NPT.

Worldwide Shipping

Yes! We ship to most countries via DHL. For a shipping quote add the items to your basket, update your address and it will calculate the shipping price. If you feel the price to be incorrect or no options are available, please get in contact providing your address inc name, contact number, and email address plus the products you wish to order.

When will my order be dispatched?

We aim to dispatch all "In Stock" items same working day if ordered before 12:00 Midday, orders placed after this time will be dispatched the following working day.

Out-of-stock items or items with a status of "Available from Supplier" are usually dispatched within 2 weeks. If there is urgency, or a more accurate date is required don't hesitate to get in touch with us.

Built-to-order manifolds are typically built in a 1st come 1st served order, and our lead times vary with demand, We advise contacting us to get our most up-to-date information

What shipping options are available?

Within the UK our main shipping methods are 1st Class Royal Mail and Next Day DHL. Orders under £50 and small in size may have the option for Royal Mail dispatch. However, for urgent orders we advise opting for the DHL Service

Outside the UK we almost exclusively use DHL, Shipping quotes can be obtained at the basket when entering the delivery address. For delivery destinations outside of the European Union (EU) items will be liable for import duty and taxes at the local rate. We are unfortunately unable to advise on these costs.

Additional information

Weight 6 kg
Dimensions N/A

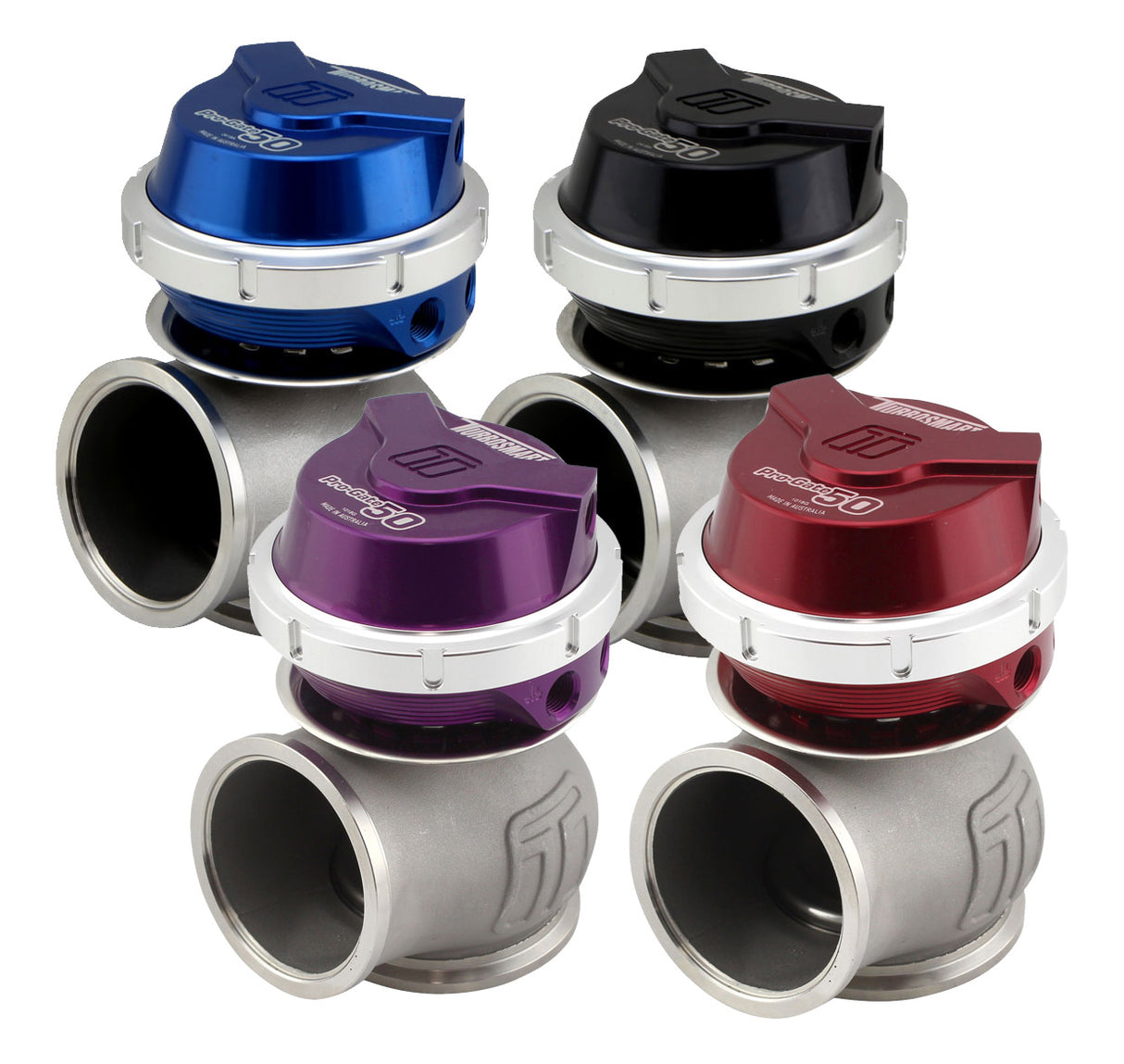

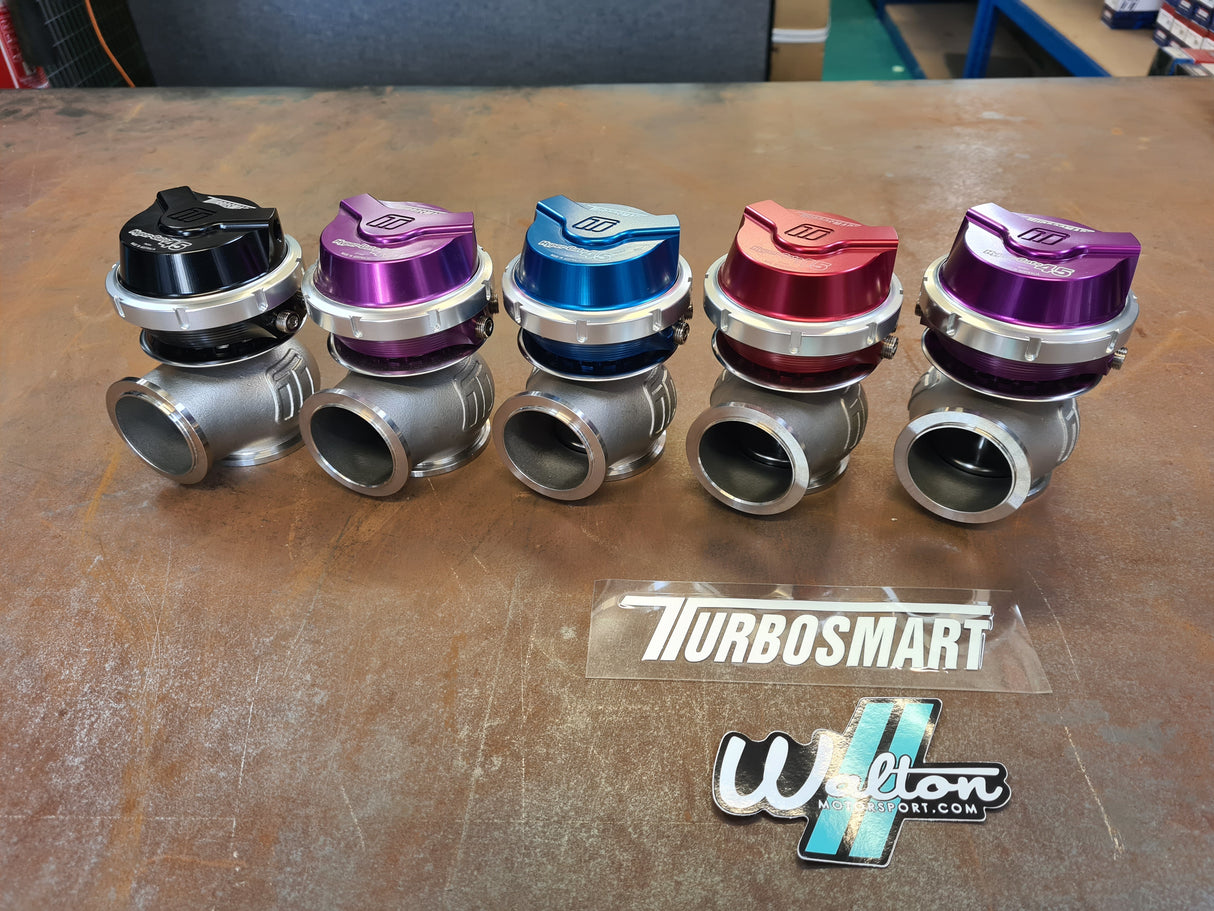

Colour

Black, Blue, Platinum, Purple, Red, Sleeper (All Black)

Brand

Turbosmart

Pressure

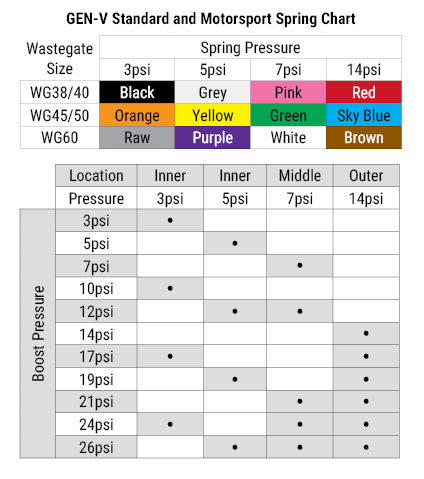

14psi Fitted (Full Range of Springs included to suit 3psi – 26psi), 7psi Fitted
