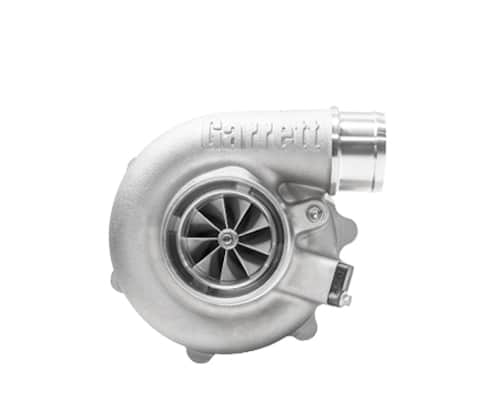

Garrett G-SERIES G25-660 Turbocharger

SKU: G25-660
Garrett G-SERIES G25-660 Turbocharger
Garrett G-SERIES G25-660 Turbocharger Reverse Rotation
Garrett G-SERIES G25-660 Turbocharger Compressor Map
Garrett G-SERIES G25-660 Turbocharger Exhaust Flow Chart

Description

Garrett G-SERIES G25-660 Turbocharger

Spec

  • Compressor Inducer – 54mm
  • Compressor Exducer – 67mm
  • Compressor Trim – 65
  • Compressor A/R – .70mm
  • Turbine Inducer – 54mm
  • Turbine Inducer – 49mm
  • Turbine Trim – 84

Features

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
  • STAINLESS STEEL WASTEGATED AND NON-WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED

External Wastegate Turbos include Supercore and Turbine Kit, and Internal are supplied assembled and calibrated by Garrett with a 1.0 bar actuator (14.7psi)

Additional information

Weight 8 kg
Brand

Garrett
Wastegate Port

External, Internal
Exhaust Housing

T25 Inlet / V-Band Outlet (.49A/R), T4 Divided Inlet / V-Band Outlet (.92 A/R), V-Band Inlet / V Band Outlet (.72 A/R), V-Band Inlet / V-Band Outlet (.92 A/R)
Type

Reverse Rotation, Standard Rotation

£1,422.70 – £1,819.47 ex VAT

Please select options below for stock status
SKU: G25-660 Category:

Description

Garrett G-SERIES G25-660 Turbocharger

Spec

  • Compressor Inducer – 54mm
  • Compressor Exducer – 67mm
  • Compressor Trim – 65
  • Compressor A/R – .70mm
  • Turbine Inducer – 54mm
  • Turbine Inducer – 49mm
  • Turbine Trim – 84

Features

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR 1055°C
  • STAINLESS STEEL WASTEGATED AND NON-WASTEGATED TURBINE HOUSING OPTION CAPABLE OF 1050°C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED

External Wastegate Turbos include Supercore and Turbine Kit, and Internal are supplied assembled and calibrated by Garrett with a 1.0 bar actuator (14.7psi)

Additional information

Weight 8 kg
Brand

Garrett
Wastegate Port

External, Internal
Exhaust Housing

T25 Inlet / V-Band Outlet (.49A/R), T4 Divided Inlet / V-Band Outlet (.92 A/R), V-Band Inlet / V Band Outlet (.72 A/R), V-Band Inlet / V-Band Outlet (.92 A/R)
Type

Reverse Rotation, Standard Rotation
